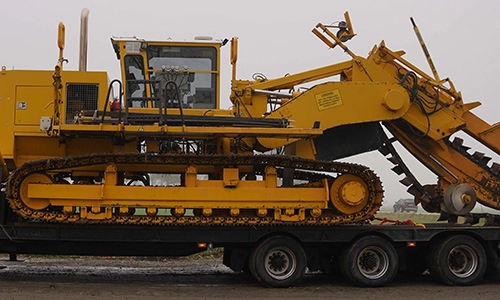

Cargo securing for road transport

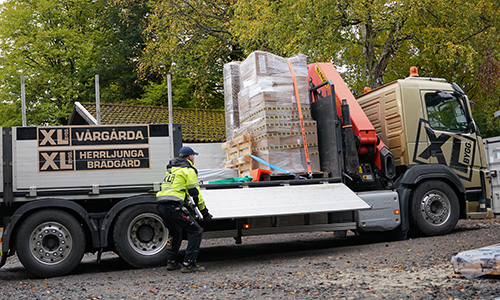

Cargoes are secured by means of locking, blocking and lashing according to the principles in our cargo securing manual. For more detailed information, also see “European Best Practices Guidelines on Cargo Securing for Road Transport”, an EU publication written by an expert group of representatives from member states and the industry.
Forankra supplies a wide range of products for safe road transport. Our product range includes families of lashing products with various properties, chain slings, unique patented cargo bars, loading and shoring beams, friction mats, cargo studs, stop blocks, corner protectors, dunnage bags etc. You will also find tools that make work easier such as strap winders, strap tension gauges and storage solutions.
Our products meet the applicable standards and regulations and are manufactured in quality controlled processes. "Safety First" is our motto. You can feel secure with products and solutions from Forankra.

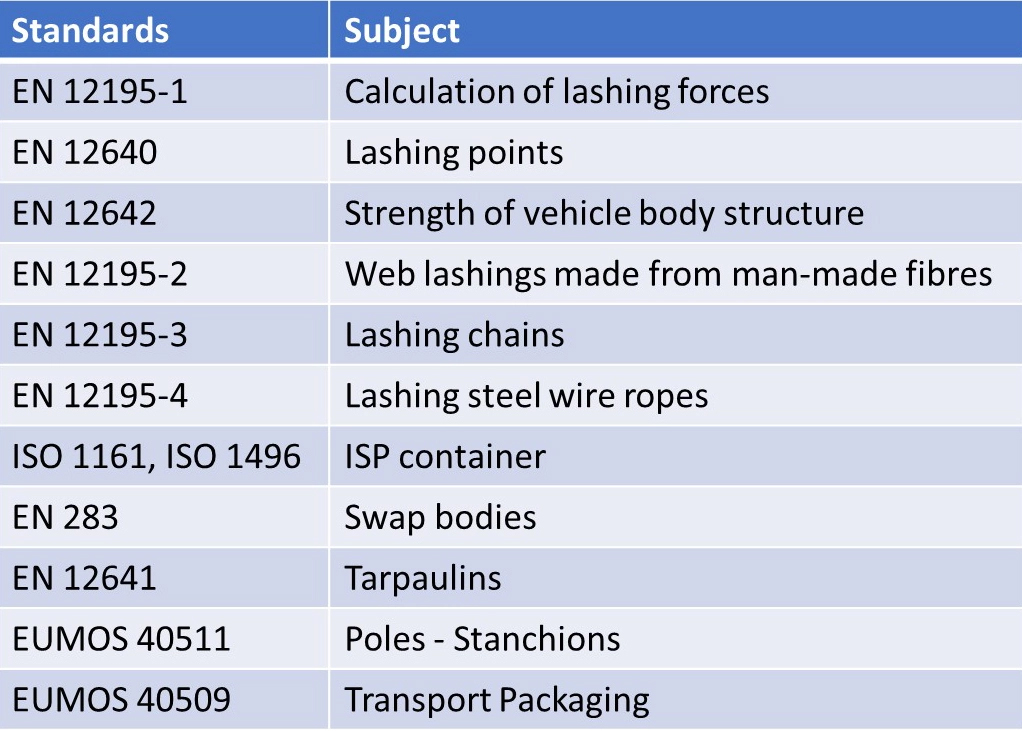

There are many regulations regarding cargo securing for road transports. Contact us to discuss how you can secure your cargo in the optimal way.
Forankra offers several services in cargo securing for road transport:
• Training in cargo securing
• Customized products and solutions
Example of products used in road transportsThere are many different products which can be used for cargo securing in road transports. Below you will find examples of such products. Click the product link for more information and to see which other products are available within the selected product category.
Lashings – BASIC
Basic 50 2000 2-parted
|Description:||Basic 50 2000 2-parted | Width: 50mm | Short part: 0,4m with doubleHook | Long part: 9,6m with doubleHook | LC: 2000daN | Color: Blue|
Basic 50 2500 2-parted
|Description:||Basic 50 2500 2-parted | Width: 50mm | Short part: 0,4m with doubleHook | Long part: 9,6m with doubleHook | LC: 2500daN | Color: Blue|
Basic 50 2000 ERGO 2-parted
|Description:||Basic 50 2000 ERGO 2-parted | Width: 50mm | Short part: 0,4m with doubleHook | Long part: 9,6m with doubleHook | LC 2000daN | Color: Blue|
Basic 50ETF 2-parted
|Description:||Basic 50ETF 2-parted | Width: 50mm | Short part: 1,0m med lockable track fitting | Långdel: 3,0m med lockable track fitting | LC: 1000 daN | Color: Blue|
Lashings – PREMIUM
Premium 25 2-parted
|Description:||Premium 25 2-parted | Width: 25mm | Short part: 0,3m with doublehook | Long part: 4,7m with doublehook | LC: 750daN | Color: Orange|
Premium 35 2-parted
|Description:||Premium 35 2-parted | Width: 35mm | Short part: 0,4m with doublehook | Long part: 5,6m doublehook with latch | LC: 1000daN | Color: Orange|
Premium Rollo 50
|Description:||Premium Rollo 50 | Width: 50mm |Length: 3,26m with doublehook |LC: 600daN | Color: Orange|
Premium 50 2000 2-parted
|Description:||Premium 50 2000 2-parted | Gradual Release Function | width: 50mm | Short part: 0,4m with double hook | Long part: 9,6m doublehook with latch | LC: 2000daN | Color: Orange|
Premium 50 2000 ERGO+ 2-parted
|Description:||Premium 50 2000 ERGO+ 2-parted | Width: 50mm | Short part: 0,4m with doublehook | Long part: 9,6m with doublehook with latch| LC 2000daN | Color: Orange|
Classic 2-part 50mm
|Description:||Classic 2-part 50mm | Short part: 0,5m with doublehook | Long part: 9,5m with doublehook with latch | LC: 1600daN | Color: Orange|
Classic Pro 2-part 50mm
|Description:||Classic Pro 2-part 50mm | Short part: 0,5m with doublehook | Long part: 9,5m with doublehook | LC: 2000daN | Color: Orange|
Machine 2-part 75mm
|Description:||Machine 2-part 75mm | Short part: 0,5m with doublehook | Long part: 9,5m with doublehook | LC: 4500daN | Color: Yellow|
Corner protections, stop blocks and friction pads
|Description:||Friction mat | 5000x250x4mm | Rubber|
|Description:||Corner protection Basic | For 50mm webbing | Measure: 100x90x2 | Plastic, Green | 390pcs/box | 3120pcs/pallet | 8 boxes/pallet|
|Description:||Corner protection Heavy duty | For 50mm webbing | Measure: 85x120x30 | Plastic, Red | 200pcs/box | 2400pcs/pallet | 12 boxes/pallet|
|Description:||Corner protection | Heavy duty | Measure: 120x120x15x6000 | Plastic, Blue|
|Description:||Corner protection | Heavy duty | Measure: 190x190x19x6000 | Plastic, Orange|
Corner protection Regupol
|Description:||Corner protection Regupol | For 50mm webbing | Measure: 250x100x8 | Rubber | 90pcs/box | 3600pcs/pallet|
Corner protection Metal
|Description:||Corner protection Metall| For Chain and Webbing | Measure: 110x110x165mm | Zincplated|
|Description:||Stop block Small | Measure: L:170mm W:100mm H:95mm | Rubber, Orange|
|Description:||Stop block Medium | Measure: L:243mm W:127mm H:230mm | Rubber, Black|
|Description:||Stop block Large | Measure: L:290mm W:190mm H:150mm | Rubber, Black | 216pcs/pallet|
Lashing chains and loadbinders
Lashing chain 10mm hook-hook
|Description:||Lashing chain 10mm hook-hook | Grade 80 - Shortlink | Breaking: 10,6ton | LC: 5,3kN | Length: 3,5meter | Color: Black/Yellow | Latch hook 10mm | PAcked 2pcs in bucket|
Lashing chain 13mm hook-hook
|Description:||Lashing chain 13mm hook-hook | Grade 80 - Shortlink | Breaking: 21,6ton | LC: 100kN | Length: 3,5meter | Color: Black/Yellow | Latch hook 13mm | packed 2 pcs in bucket|
|Description:||Loadbinder 10mm | Breaking: 12,8ton | LC: 63kN | With safety pin|
|Description:||Loadbinder 13mm | Breaking: 21,6ton | LC: 100kN | With safety pin|
Cargo bars, shoring beams
Ergobar - Short
|Description:||Ergobar - Short | 1900-2400mm, 800N | Aluminum, weight 4,5kg | Twospringfunction|
Ergobar - Export
|Description:||Ergobar - Export | 2400-2800mm, 1500N | Aluminum, weight 4,5 kg | Twospringfunction|
Ergobar - Nordic
|Description:||Ergobar - Nordic | 2670-3470mm, 1500N | Aluminum, weight 5,0 kg | Twospringfunction|
Ergobar - Short, with cargo hoop
|Description:||Ergobar - Short | 1900-2400mm, 800N | Aluminum | With mounted cargo hoop W720 x H1410mm|
Cargo bar Gas - Short
|Description:||Cargo bar Gas - Short | 1900-2550mm | 1200N|
Cargo bar Gas - Long
|Description:||Cargo bar Gas - Long | 2350-3350mm | 1200N|
Shoring Beam L=2400-2700 mm
|Description:||Shoaring board L=2400-2700 mm|
Decking beam with label on both L=2340-2630 mm
|Description:||Decking beam with label on both L=2340-2630 mm|
Combitrack aluminium L=3000 mm
|Description:||Combitrack aluminium L=3000 mm | 25 mm hole | AW-6082 T6|
Double Decking beams and rods
Double Decking Beam ATD
|Description:||Double Decking Beam ATD | Standard 1000 kg L=2308-2756 mm | Adapted for track with semicirc shape|
Double decking Rod
|Description:||Double decking Rod | f. regul. of height | Model Forankra | L=1250 mm|
Double decking Rod
|Description:||Double decking Rod | f. regul. of height | Model Krone|
Be Cool 3-sections WxH 2500x3040mm
|Description:||Be Cool 3-sections | WxH 2500x3040mm | Thermal Cond. 0,037W/mK | Partition wall|
PVC-curtain 3-sections plate height 60mm, Complete
|Description:||PVC-curtain 3-sections plate height 60mm, Complete | Roof rail & handle included | Width= | Height= | Curtain|
Foldable partition WxH 2500x2800mm
|Description:||Foldable partition | WxH 2500x2800mm | Woven polyester, white | Thermal Con. 0,042 W/mK | Strap for cargobars on each side | Socket for cargobar foot on middle section | Alu profile in middle section for reinforcement | Partition|
SafeCold 2-sections WxH 2100x2100mm
|Description:||SafeCold 2-sections | WxH 2100x2100mm | Thermal Cond. 0,033W/mk | Partition|
Walk in Wall 3-Section foldable partition B2500XH2800mm
|Description:||Walk in Wall | 3-Section foldable partition | B2500XH2800mm | Polyester weave, blue | 3 overhead pockets for cargo bars | Walking section, right with handle | Thermal conductivity 0,042 W/mK|
Partition Type 1
|Description:||Partition Type 1 | Top beam included | Rollable Silver | Thermal Cond 0,048 W/mK | W=2500mm H= 3100mm | Wear protection at bottom|
Other useful products
Hook for Combi/Universaltrack pair
|Description:||Hook for Combi/Universaltrack, pair|
Holder for tools
|Description:||Holder for tools | fits Cargo restraint track Combi|
Storagebox for lashings with winch
|Description:||Storagebox for lashings with winch | fits Cargo restraint track Combi|
|Description:||Tenmet 500 | Tension force indicator | Web width max 50mm | Max STF 500 daN|
Wind-X kit 50
|Description:||Wind-X kit | Web-roller for Electric Screw Driver | Kit with Lock-X 50 and Grip-X 50|
|Description:||Grip-X | Rubber latch for lashing hooks | 10pcs/pack|
|Description:||Lock-X 50 | Webbing keeper for lashing 50mm | Velcro | 10pcs/pack|
|Description:||Dynello Rewinder | Battery & 230V, 12-24V charger included|
|Description:||Dynello Clip | Store | 6-pack|
Dynello Fling Clip
|Description:||Dynello Fling Clip | Store packaged | 2-pack|
Our products comply to current standards and regulations and are manufactured in accordance to quality controlled processes. "Safety first" is our motto.
Choosing the right lashing
Lashings are the most common way to secure cargo. The choice of lashing depends on the type of goods and the choice of cargo carriers. Please, contact us for advice and recommendations in order to ensure the correct solution for your goods.
Corner protections and stops
Corner protections are used to protect products and goods from damage when using straps or lashings. The different types of stops are used to prevent the cargo from sliding against the surface.
The loadbinder is used for adjusting the length of the lashing chain. The loadbinder hooks are connected to the chain links.

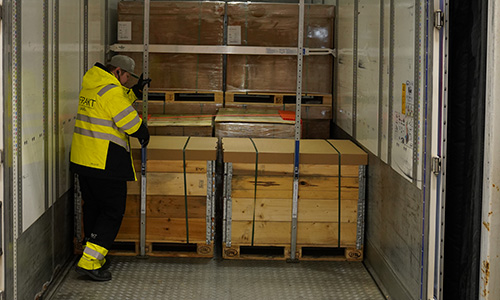

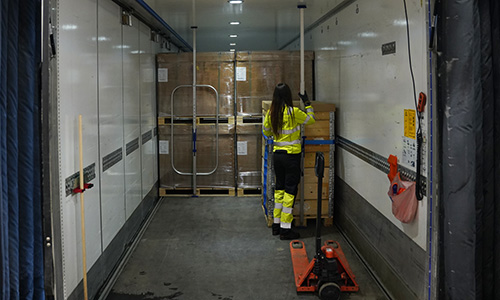

Cargo bars and shoring beams
Cargo bars and shoring beams are easily used to support and separate the goods on the carrier. In our product range you will find different cargo bars such as gas cargo bars, LF bars and round alumium cargo bars.
Double decking is a beam/track system, which makes it possible to load the goods on two levels instead of goods on goods. As a result the risk of damaging the goods is reduced and a more cost effective solution is obtained, as you can transport twice as much cargo.
Forankra has a wide range of thermo-products, that can be used on most types of cargo carriers. With highly insulating material in the thermo-walls and thermo covers good insulation between different temperature zones can be obtained, enabling safe transportation of frozen and refrigerated products as well as frost-sensitive products.
Other useful products
SECU Stick is a Multi-tool which can be used in most situations where it is difficult to access different areas due to height or distance, such as placements of lashings or cargo nets. SECU Stick has a built-in function which makes it easy to fixate or remove tarpaulin slats as well as to position corner protection.
Tenmet 500 is a measurement tool which allows truck drivers to check the tensioning force in the straps in a quick and easy way and thereby ensuring safe cargo securing. Tenmet is easy to use - just attach it to the strap, push down the handle and read the tension force on the meter. This measurement is easy to perform and takes only a few seconds.
Wind-X is a system that simplifies working with lashings. The system includes the following parts – Wind-X which is a web-roller that helps you roll up the lashing with an electric screwdriver, Grip-X makes sure that the hook on the lashing is kept in place and Lock-X is a velcro product that locks the webbing and keeps it in place.
